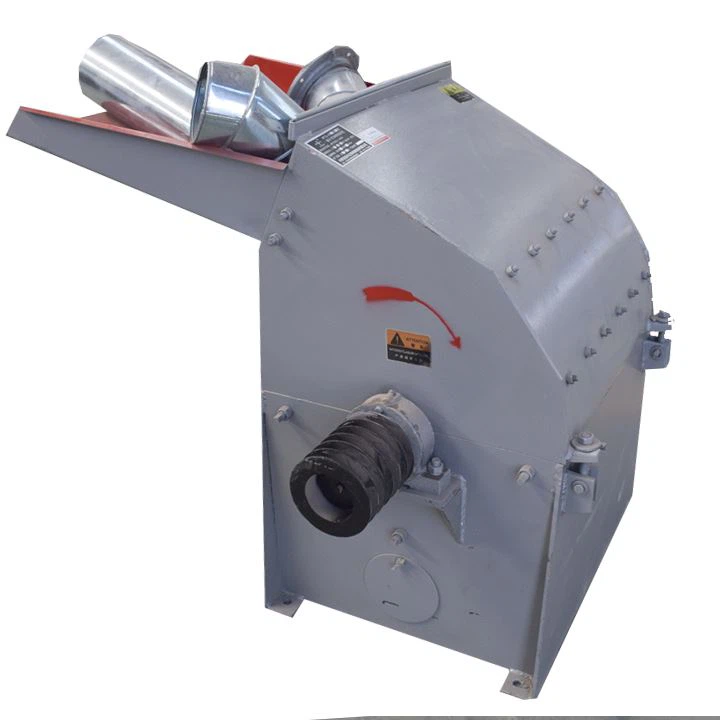

Products Description
The tangential feed hammer mill type corncob crusher can crush various dry feeds such as corncobs, corn stalks, sorghum, bean stems, peanut vines, etc., and can also crush raw materials such as Chinese herbal medicines, quartz, coal, etc
Product Features

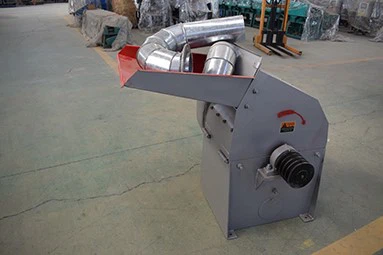

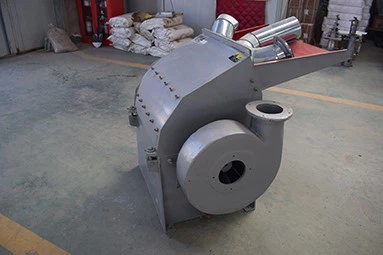

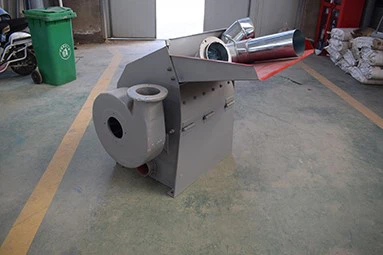

1.This machine is a tangential feed hammer mill type crusher, which can crush various dry feeds.
2.It is suitable for corncobs, corn stalks, sorghum, bean stems, peanut vines, etc., and can also crush raw materials such as Chinese herbal medicines, quartz, coal, etc.
3.The machine casing is welded with thickened materials, and the feed inlet is located at the upper part of the crusher, which can be matched with various feeding structures.
4.The hammer plates are symmetrically arranged to ensure the dynamic balance of the rotor, thereby reducing vibration and noise.
5.When the crusher is in operation, materials enter the crushing chamber and are crushed into fine particles by the impact of high-speed rotating hammer plates and the friction of the toothed plate. Under the action of centrifugal force and air flow, the particles fall through the screen holes and are finally sucked into the storage chamber by a centrifugal fan.
Product Parameters
| Model | Input Power | Production Efficiency | Weight | Dimensions |
|---|---|---|---|---|
| LWFQ - 40 | 7.5KW/380V | 600KG/hour | 120KG | 850x780x830mm |
| LWFQ - 50 | 11KW/380V | 900KG/hour | 180KG | 1100x930x980mm |
| LWFQ50 - 40 | 22KW/380V | 1500KG/hour | 320KG | 1500x980x980mm |
Raw materials
Application Scenarios
Production of Edible Fungus Cultivation Substrate
After being crushed, corncobs are mixed with auxiliary materials such as wheat bran, rice bran, gypsum and lime to form a substrate. Through fermentation and sterilization, the substrate can be used to cultivate various mushrooms such as Lentinula edodes and Pleurotus ostreatus
Animal feed
Crushed corncobs can be mixed with other ingredients to make animal feed. Adding them to cattle and sheep feed can increase crude fiber and aid gastrointestinal digestion; using them in pig and chicken feed can reduce costs and achieve efficient resource utilization
Organic fertilizer
Crushed corncobs used as compost raw materials, when mixed with livestock and poultry manure and crop straws, can adjust the carbon-nitrogen ratio, improve air permeability and water retention, accelerate microbial decomposition, and promote compost maturity. The resulting organic fertilizer can improve soil and enhance soil fertility
Chemical Raw Material Production
Corncobs are an important source for extracting chemical raw materials such as xylitol and arabinose. Crushing corncobs with a corncob crusher facilitates subsequent chemical processing and component extraction. Xylitol extracted from crushed corncobs through complex processes is widely used in industries such as food, medicine, and chemistry; arabinose can be used as a food additive and has unique health functions
Biomass Fuel Production
After being crushed, corncobs can be mixed with other biomass raw materials to produce granular or briquetted fuels. These fuels have advantages such as high calorific value, good combustion efficiency, and low pollution. They can replace fossil fuels in industrial boilers, civil heating, and other applications, providing green energy solutions that help reduce carbon emissions and facilitate energy structure transformation

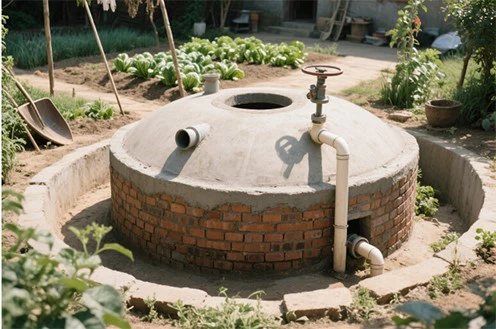

Biogas Fermentation Raw Materials
Crushed corncobs are high-quality raw materials for biogas fermentation. Their large specific surface area is conducive to the attachment and decomposition of microorganisms. Mixing them with livestock and poultry manure can improve fermentation efficiency and gas production rate, stably producing biogas for rural cooking, lighting, and other uses. After fermentation, biogas slurry and residue can also be used as organic fertilizers for farmland
