Products Description

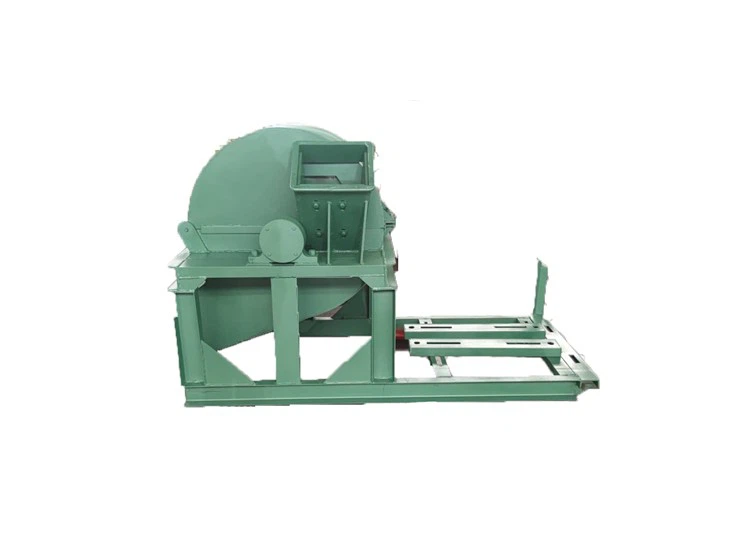

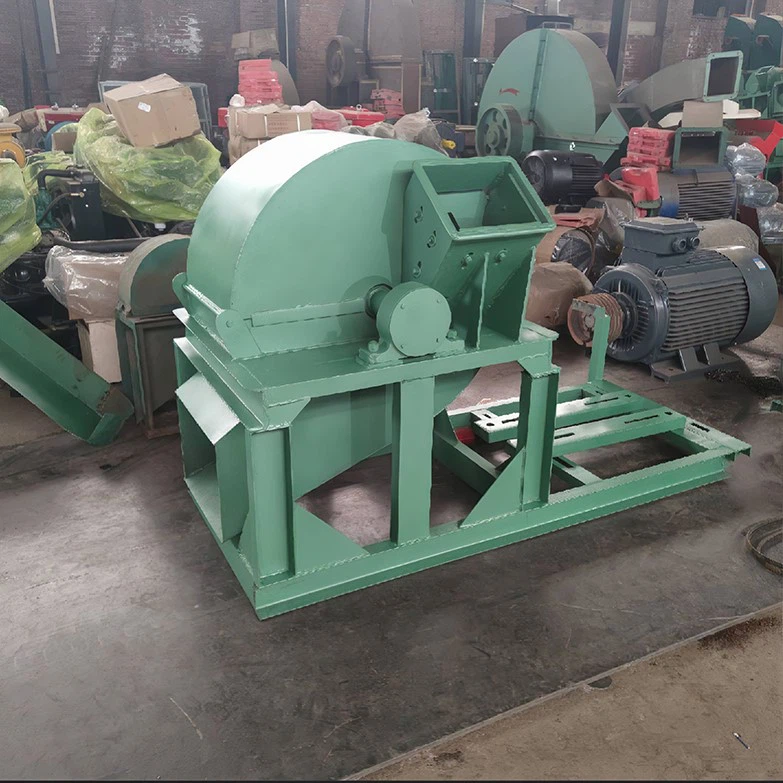

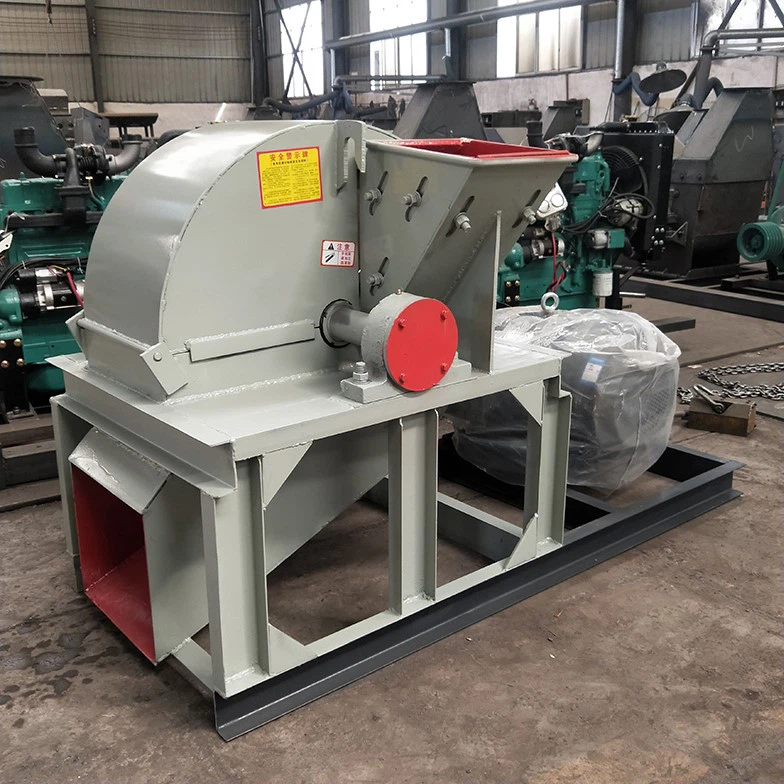

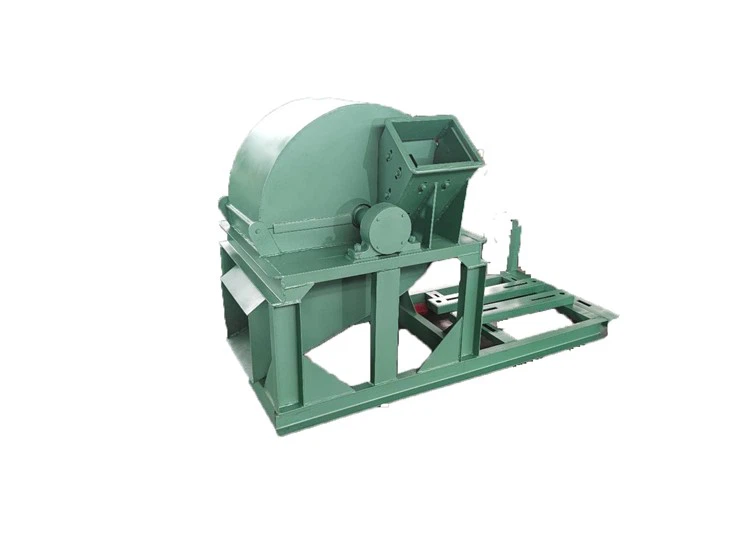

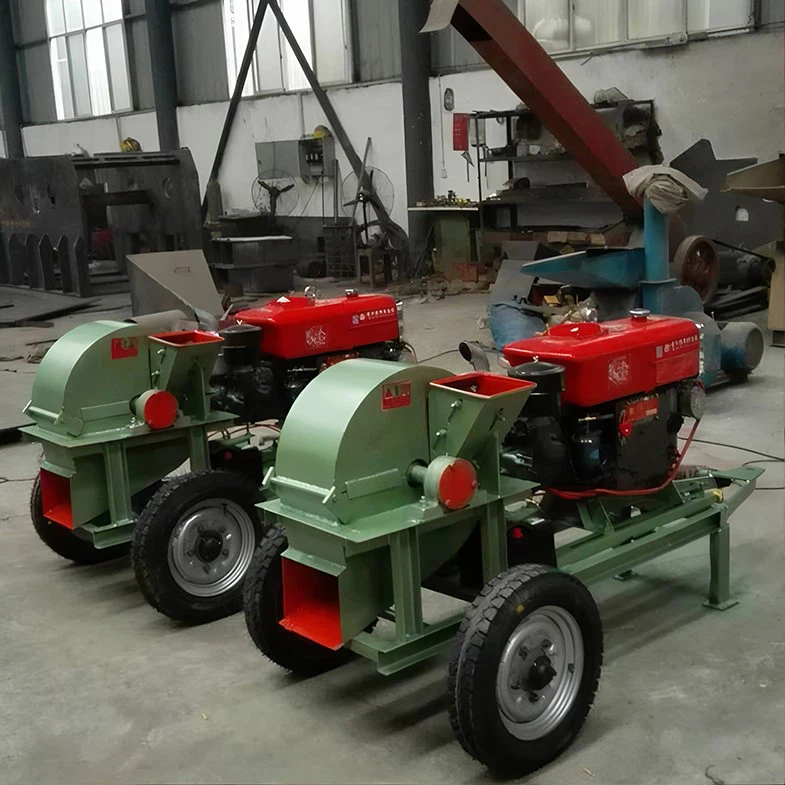

Wood crushers, also known as log chippers, wood shredders, or wood cutters, are powered by electric motors, giving them formidable crushing capabilities. Their blades are meticulously designed to cut wood into fine wood chips and shavings. Rapidly rotating hammers pulverize larger wood chunks into fine sawdust. Once the material reaches the desired size, the wood powder passes through a screen and is efficiently discharged through the outlet, ensuring high-efficiency processing.

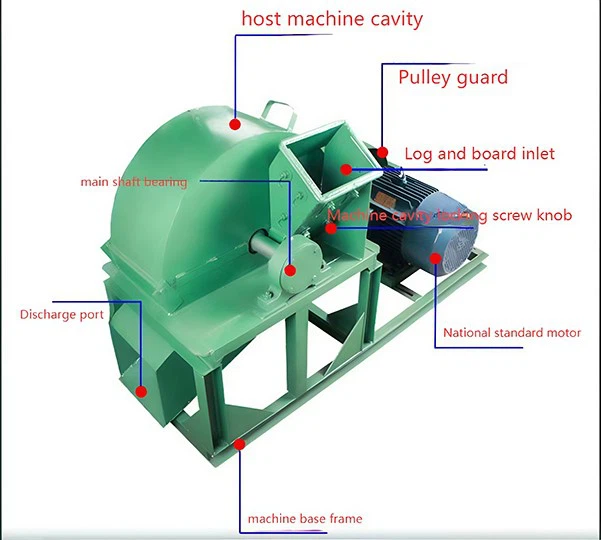

Product Components
Host Machine Cavity
This is the machine's core crushing area, housing blades and a rotating disc. Once wood enters, it is cut and pulverized into wood chips or shavings by the high-speed rotating blades.
Main Shaft Bearings
The main shaft bearings support the high-speed rotating shaft inside, ensuring smooth operation under heavy loads. They are critical components for maintaining crushing efficiency and equipment longevity.
Discharge Outlet

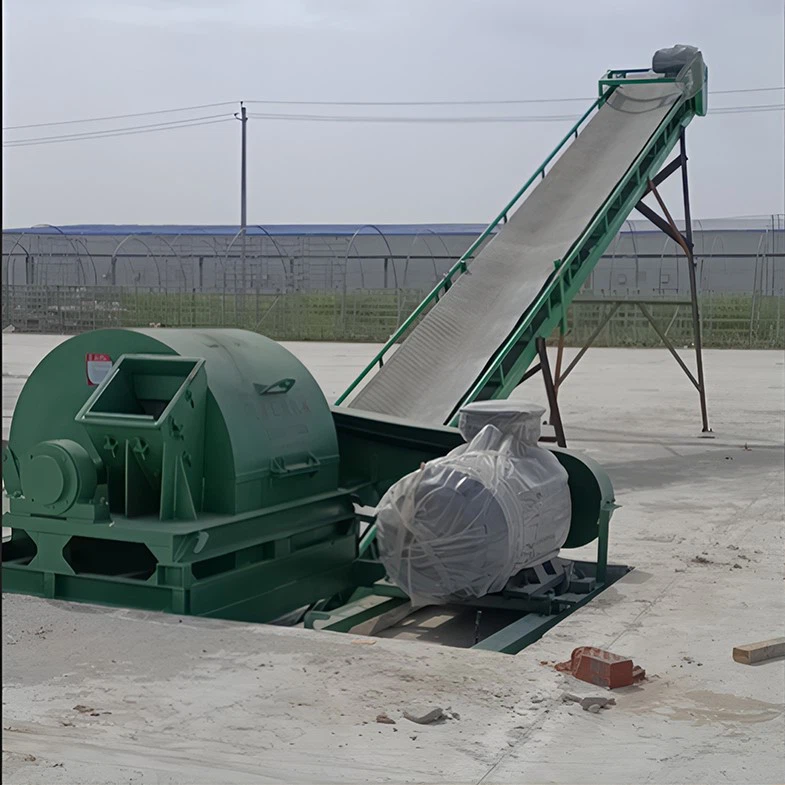

Finished wood chips or shavings exit the machine through this outlet, typically connecting to a conveyor belt or directly collecting the material.
Machine Base Frame
Constructed from heavy-duty steel welded into a robust structure, the base frame serves as the load-bearing and supporting foundation for the entire unit. It ensures stability during high-speed operation, preventing vibration or displacement.
Feed and Drive Components
Log and Board Feed Opening
Raw materials (logs, branches, board offcuts, etc.) are fed into the machine through this inclined opening, designed to facilitate material sliding into the crushing chamber.
Chamber Locking Knob
The locking knob enables quick opening or closing of the main chamber access door for blade replacement, internal residue removal, or routine maintenance.
Pulley Guard
Covers the drive belt and pulleys to prevent accidental operator contact with moving parts, while also providing dust protection and safeguarding the belt.
Motor
The power source of the equipment, driving the spindle and shredding blades via belt transmission. Utilizes a national standard motor to ensure stable and durable power output.
Our Products
Raw Materials and Characteristics
The wood crusher is a multifunctional tool that can process many raw materials, such as logs, branches, tree bark, wood shavings, wood chips. It can also crush materials like formwork, old and worn-out furniture, leaves, straw, corn cobs, etc. into sawdust.
wooden block
wood
bough
cortex
Application scenarios
The Wood Shredder has a wide range of applications. It can be used in artificial board factories, paper mills, for feed production, in the preparation of Mushroom substrate and for processing biological pellets It can also serve as a raw material processor in the production of particleboard, sawdust board, and medium-density fiberboard
